Testing the USB2serial(rs232 TTL) bridge by using an ANT8

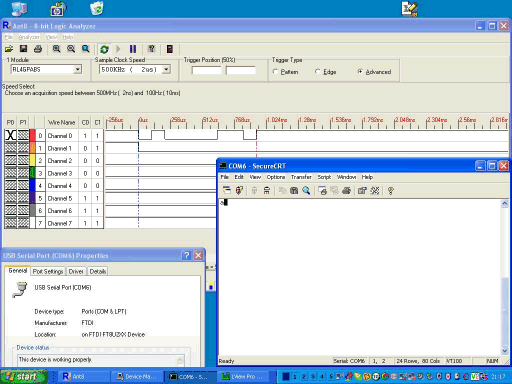

What do we see here:

• We have a serial port console (SecureCRT www.vandyke.com ) opened at COM6
• COM6 is a serial port created by the driver (lower left corner) for the USB2serial device (datasheet)
• Bits are visible at the ANT8 red pin
• You see an echo on the serial console because the tx and rx pin are connected with each other

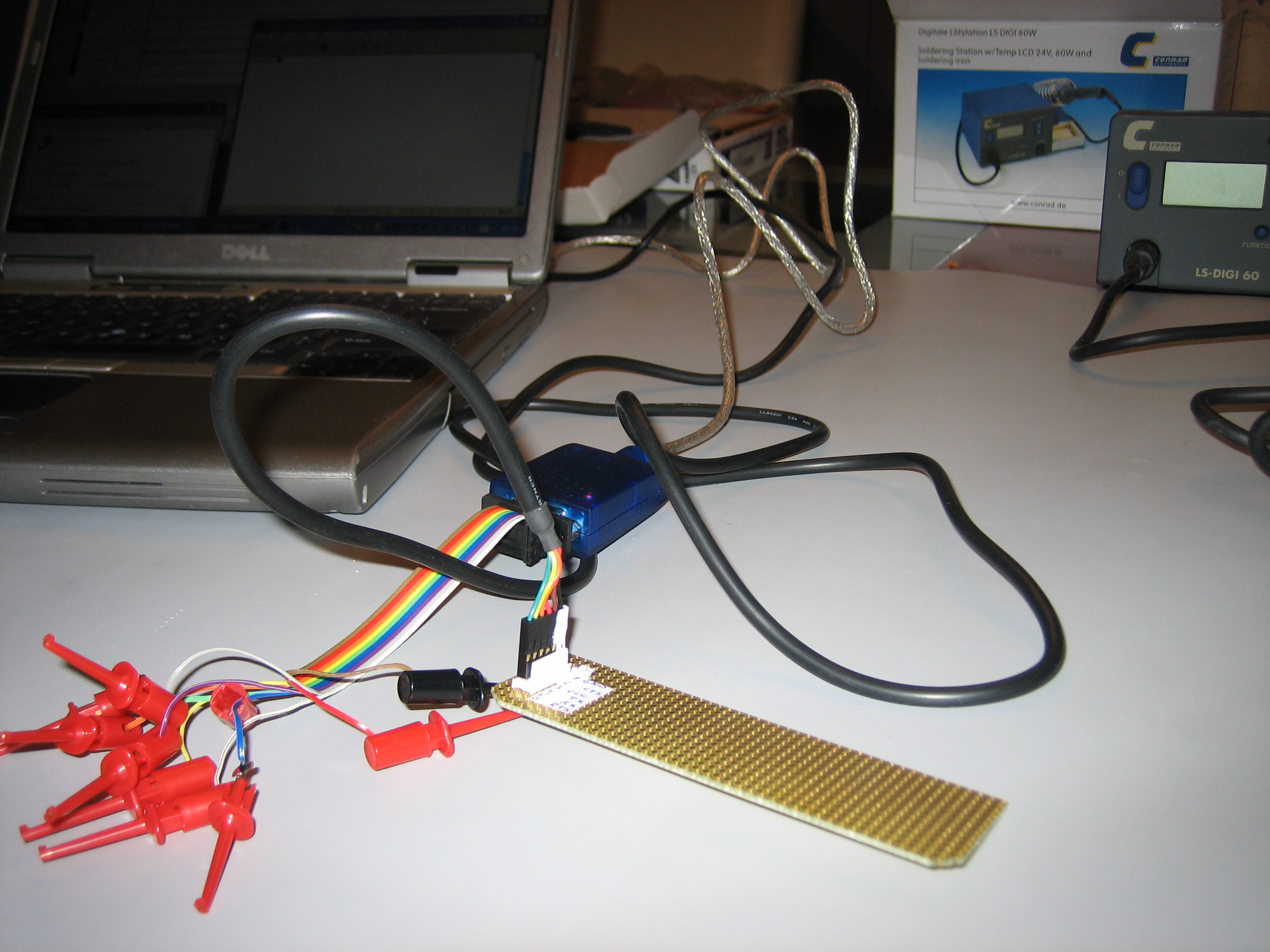

Set-up:

• Notebook
• ANT8
• PCB with connector
